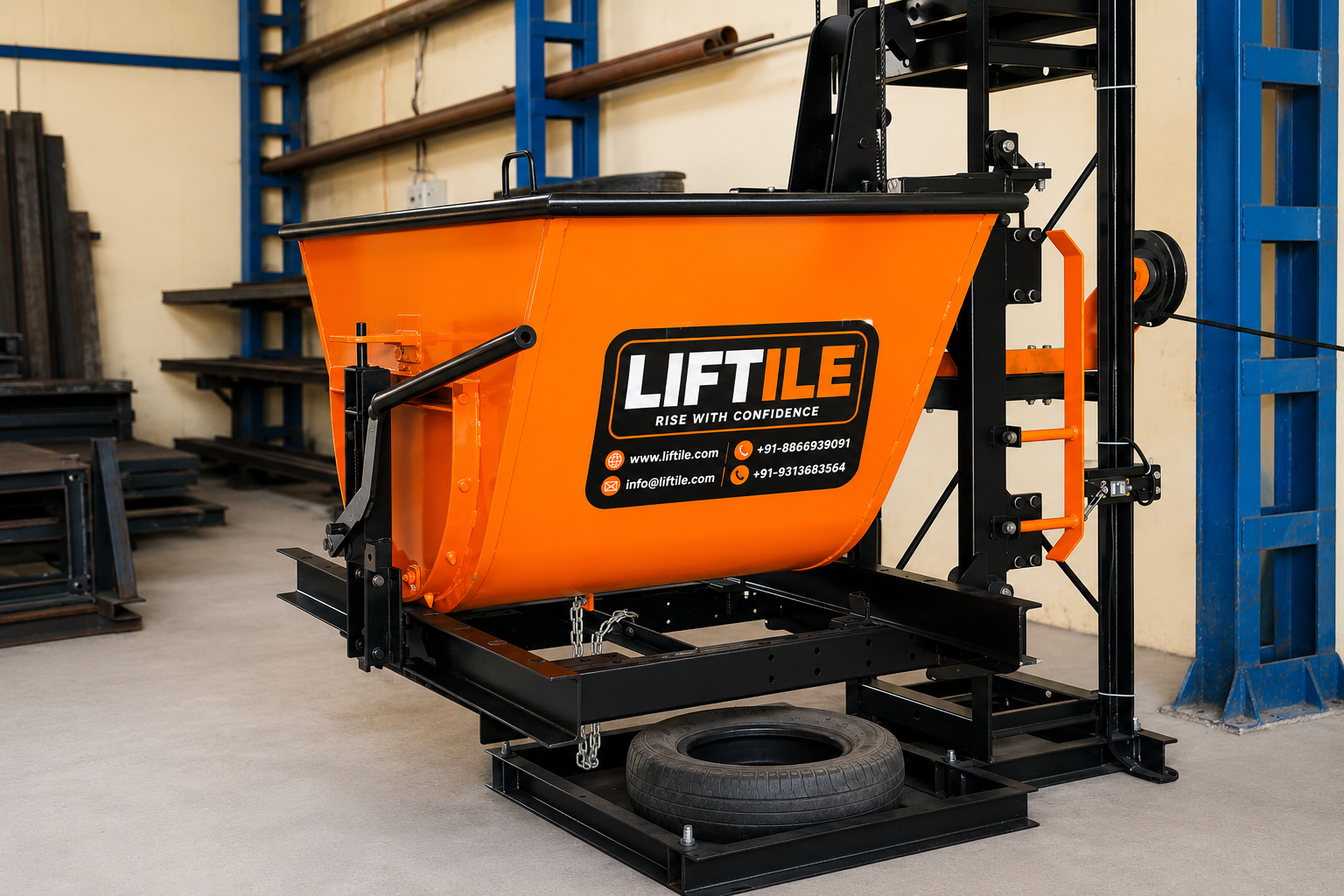

Concrete Bucket (Tilting Type)
300 Litres / 0.3 Cubic Meter tilting-type bucket for concrete pours and heavy material transport.
LMTB Series
Multi Functional
Tower Hoist
(Wire Rope)
The LIFTILE LMTB Series is engineered for safe and efficient vertical transportation of construction materials with premium components, advanced safety systems and exceptional reliability. Designed for residential, commercial and industrial construction projects up to 125 metres.
- Heavy Duty Construction
- Advanced Safety Features
- Premium Branded Components
- High Performance
- Made in India
Up to 125 m
Maximum Height
Up to 1500 kg
Gross Load Capacity
30–35 m/min
Lifting Speed
Made in India
Engineered & Manufactured
Gallery

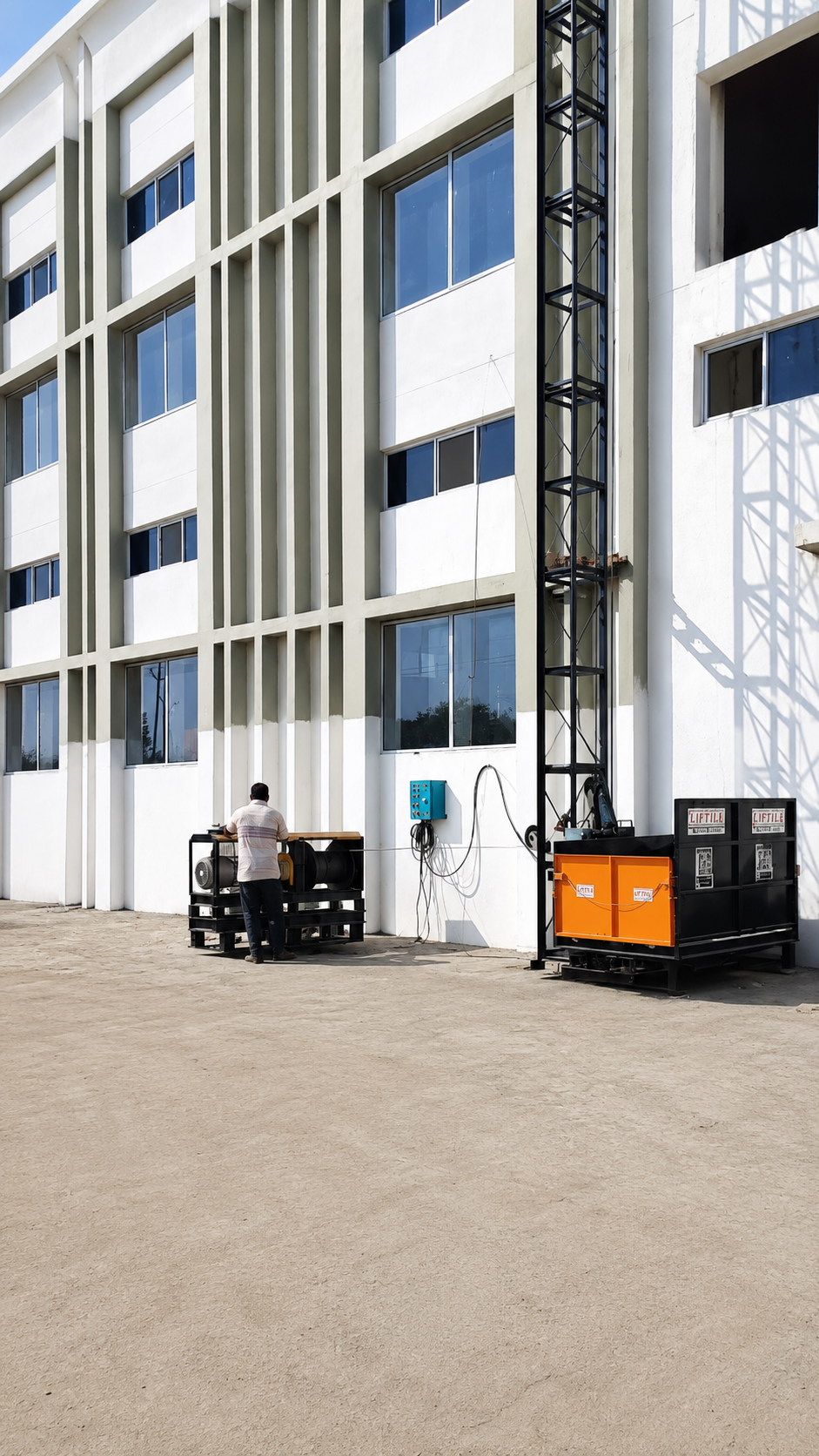

LMTB Series In Action

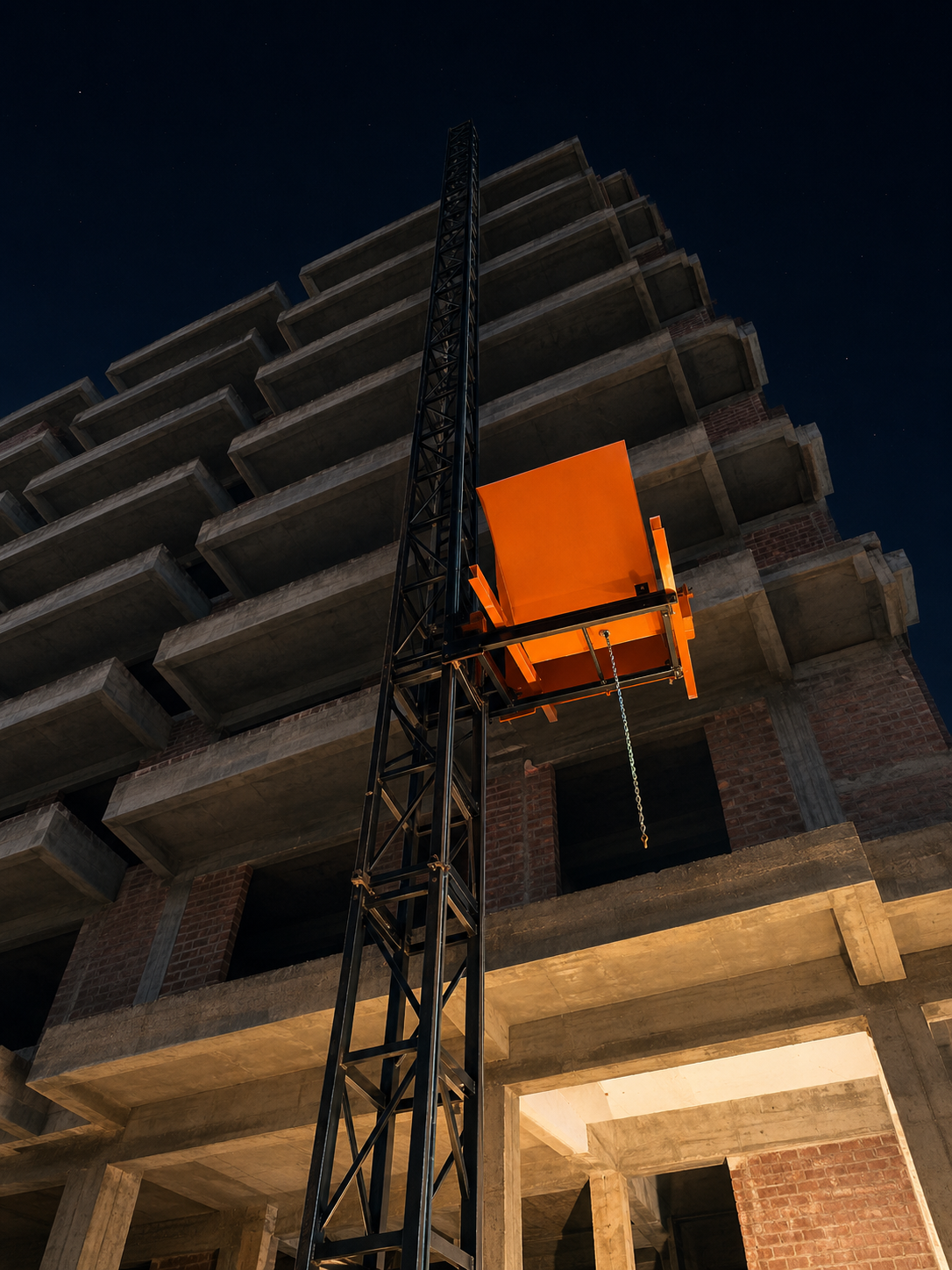

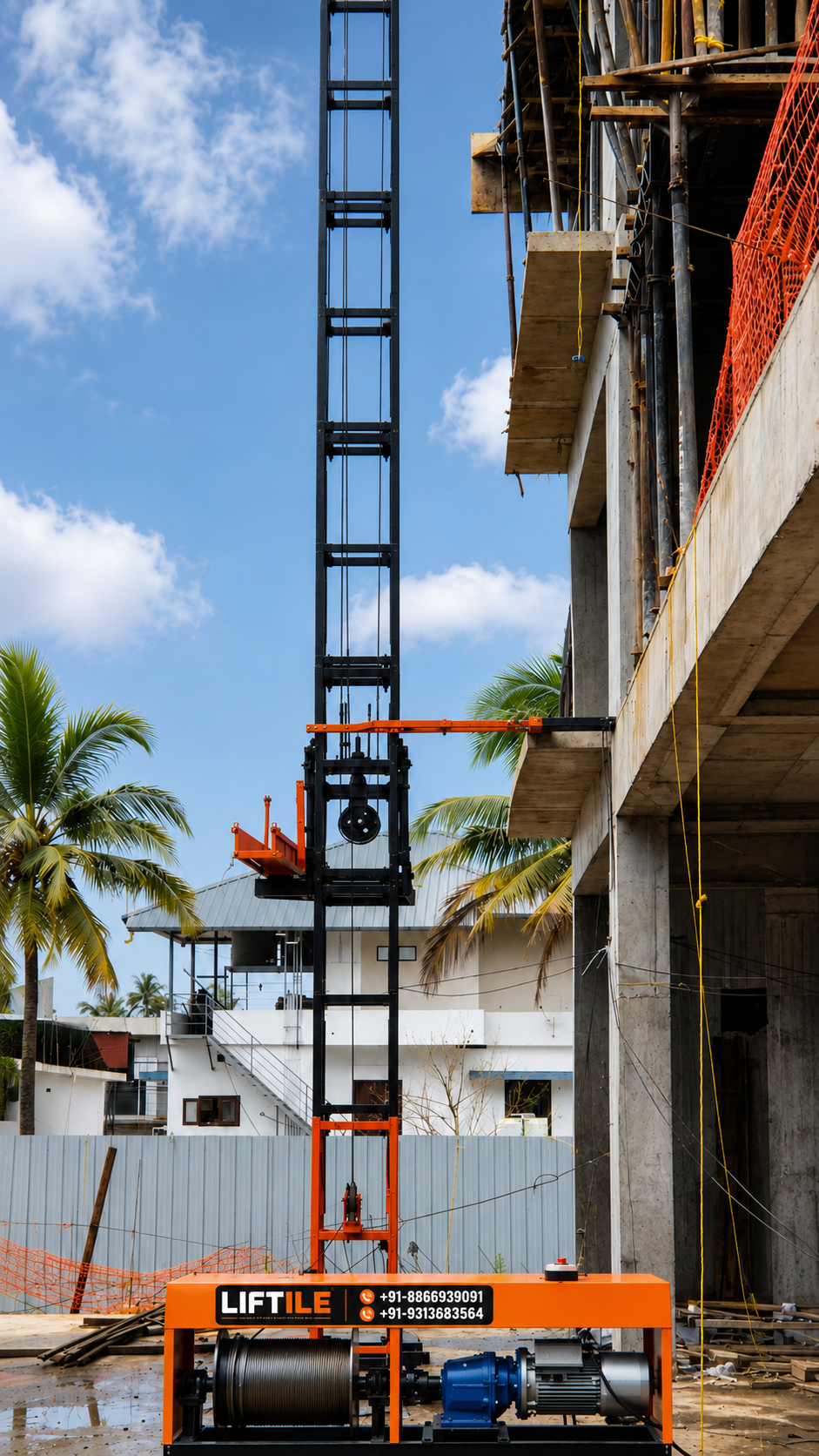

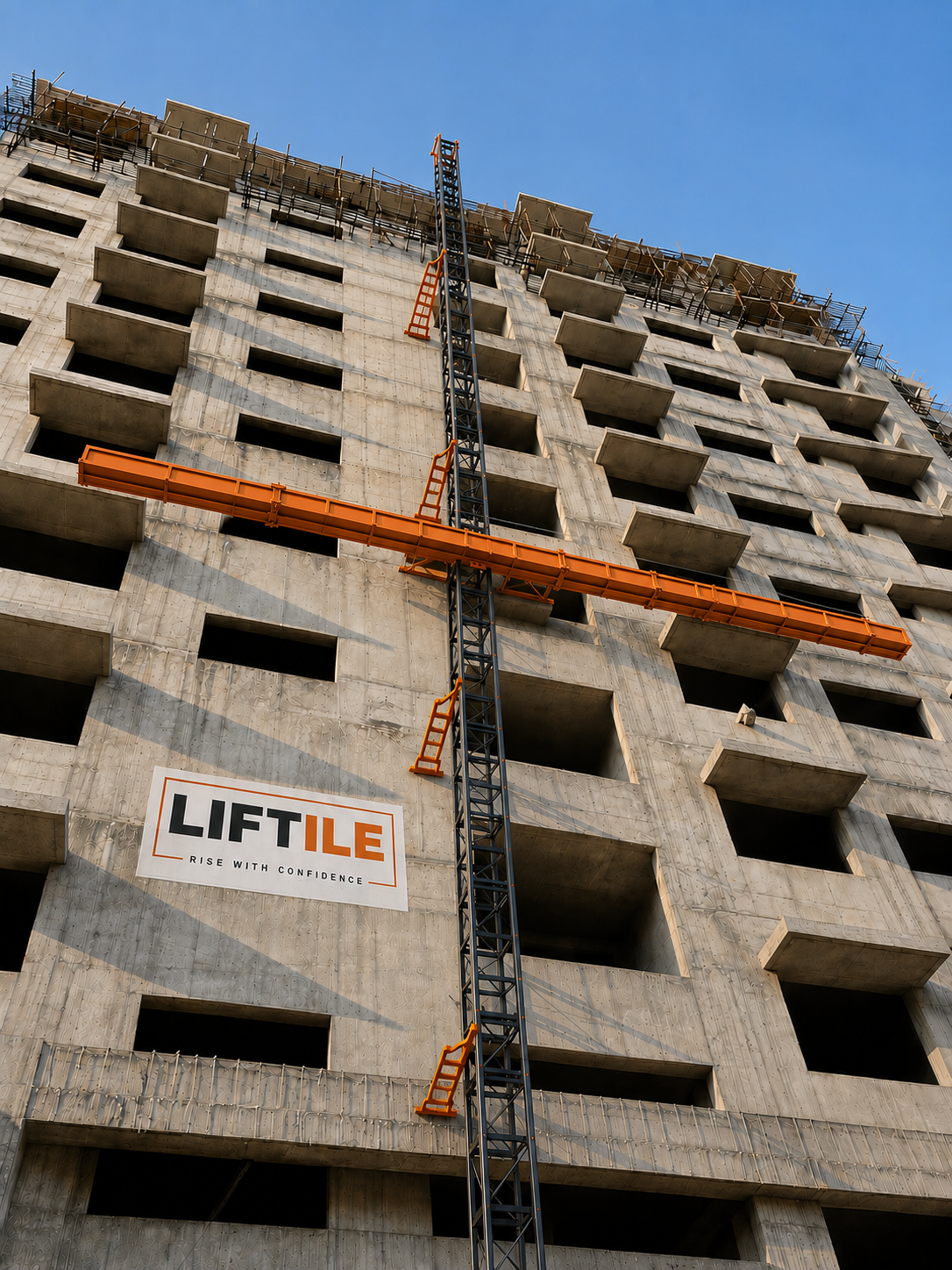

A closer look at LIFTILE LMTB Series Multi Functional Tower Hoists on live construction sites across India.
LMTB Series

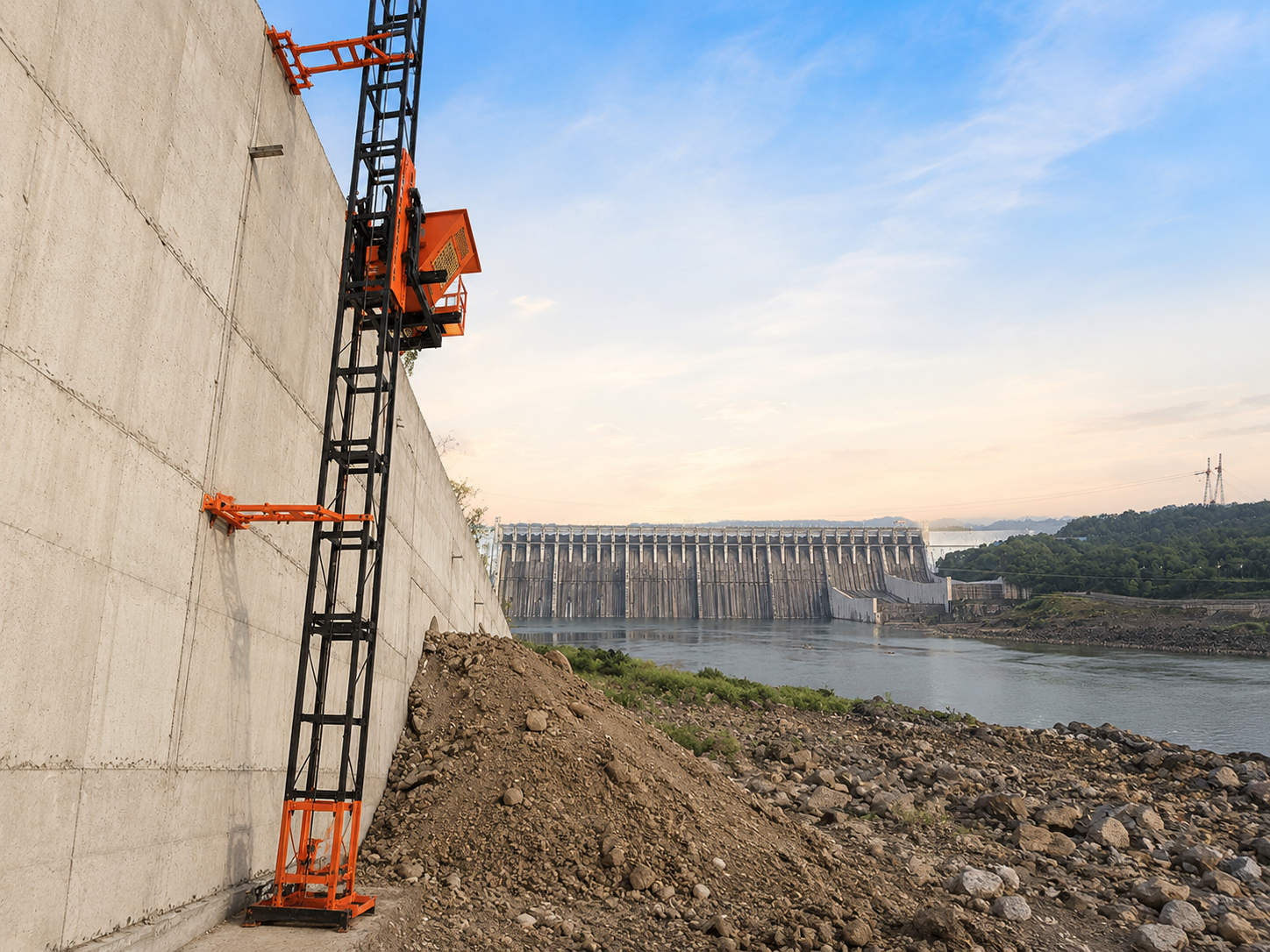

LMTB Series on a major infrastructure project — mast attached to a concrete dam wall
At a Glance
Quick Specifications
The essentials — with a model selector to switch between LMTB1000 and LMTB1500 configurations.
Rated Gross Load
1000–1500 kg
Maximum Height
Up to 125 m
Lifting Speed
30–35 m/min
Brake Motor
10 HP – 12.5 HP
LMTB1000
Versatile 1000 kg model for high-rise construction
- Rated Gross Load
- 1000 kg
- Recommended Payload
- 800 kg
- Wire Rope
- 12 mm (6×36)
- Electric Motor
- 10 HP (7.5 kW Brake Motor)
- Lifting Speed
- 30–35 m/min
- Maximum Height
- 125 m
- Mast Section
- 500 × 400 × 1500 mm
- Rectangle Bucket
- 1250 × 800 × 610 mm
Key Features
Built for Performance.
Engineered for Reliability.
The LMTB Series combines advanced engineering with premium branded components and rigorous quality standards to deliver dependable performance on demanding construction sites.
Advanced Limit Switch Protection
Automatically cuts power at the top and bottom travel limits to protect the machine and improve operator safety.
Bonfiglioli Brake Motor
Premium brake motor ensures safe stopping, precise positioning and reliable operation during power failures.
Premium Powder Coating
7-Tank pre-treatment with durable powder coating provides excellent corrosion resistance and long-lasting appearance.
Wired Remote Control
Operate the hoist safely from a convenient location with responsive and precise controls.
Emergency Stop System
Dedicated emergency stop button instantly halts machine operation during unsafe conditions.
ABB Electrical Components
Premium ABB electrical accessories ensure dependable control, enhanced safety and long-term reliability.
Premium Branded Components
Manufactured using trusted brands including Bonfiglioli, ABB, Schneider Electric, Polycab, Usha Martin, FAG Bearings and Elecon.
Owner Inspected Before Dispatch
Every machine undergoes testing, inspection and trial operation before dispatch to ensure dependable performance.
Optional Accessories
Optional Accessories
A complete range of accessories to customize the LMTB Series for specific project applications and lifting requirements.

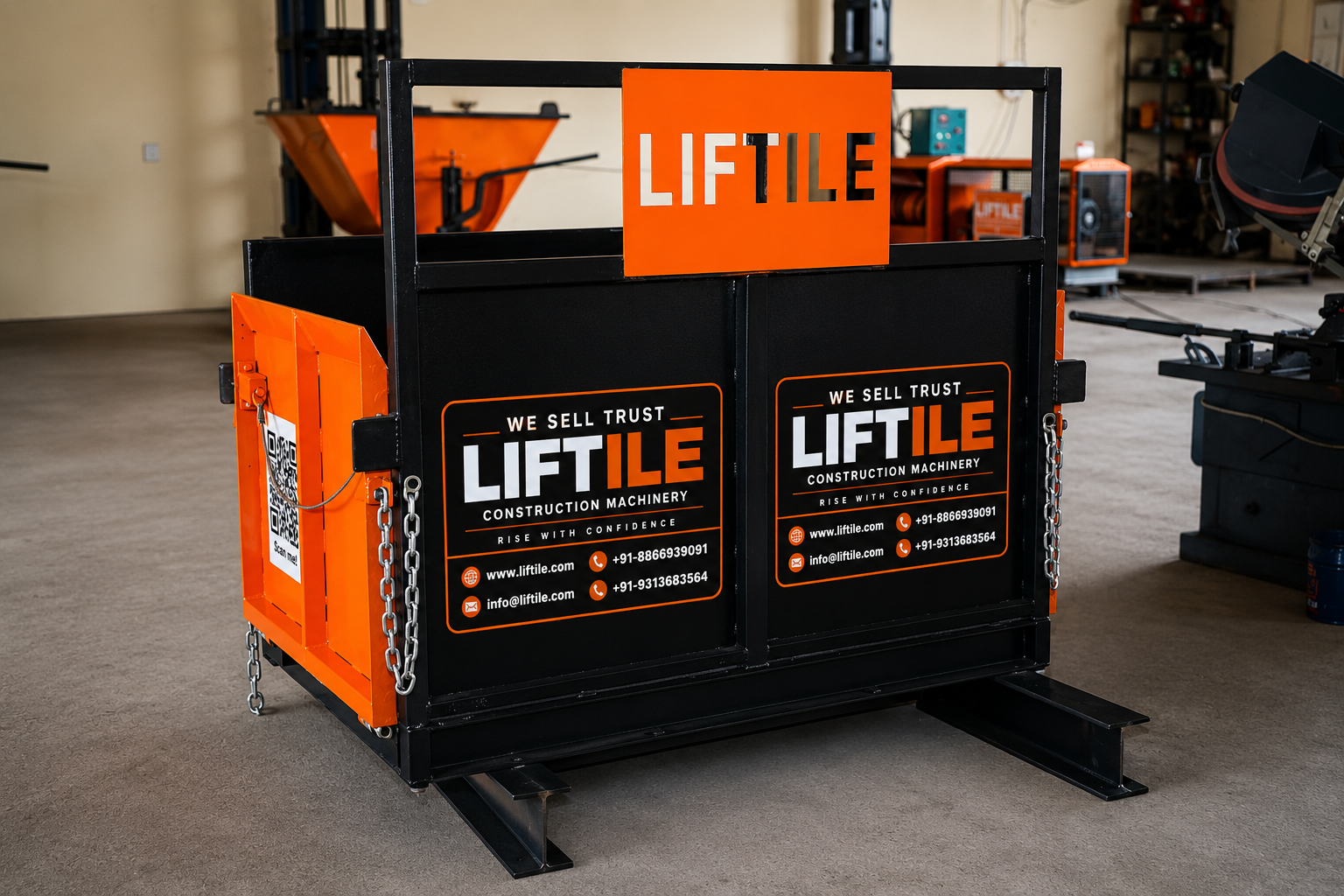

Rectangle Material Bucket
Heavy-duty material lifting bucket for bricks, AAC blocks and general construction materials.

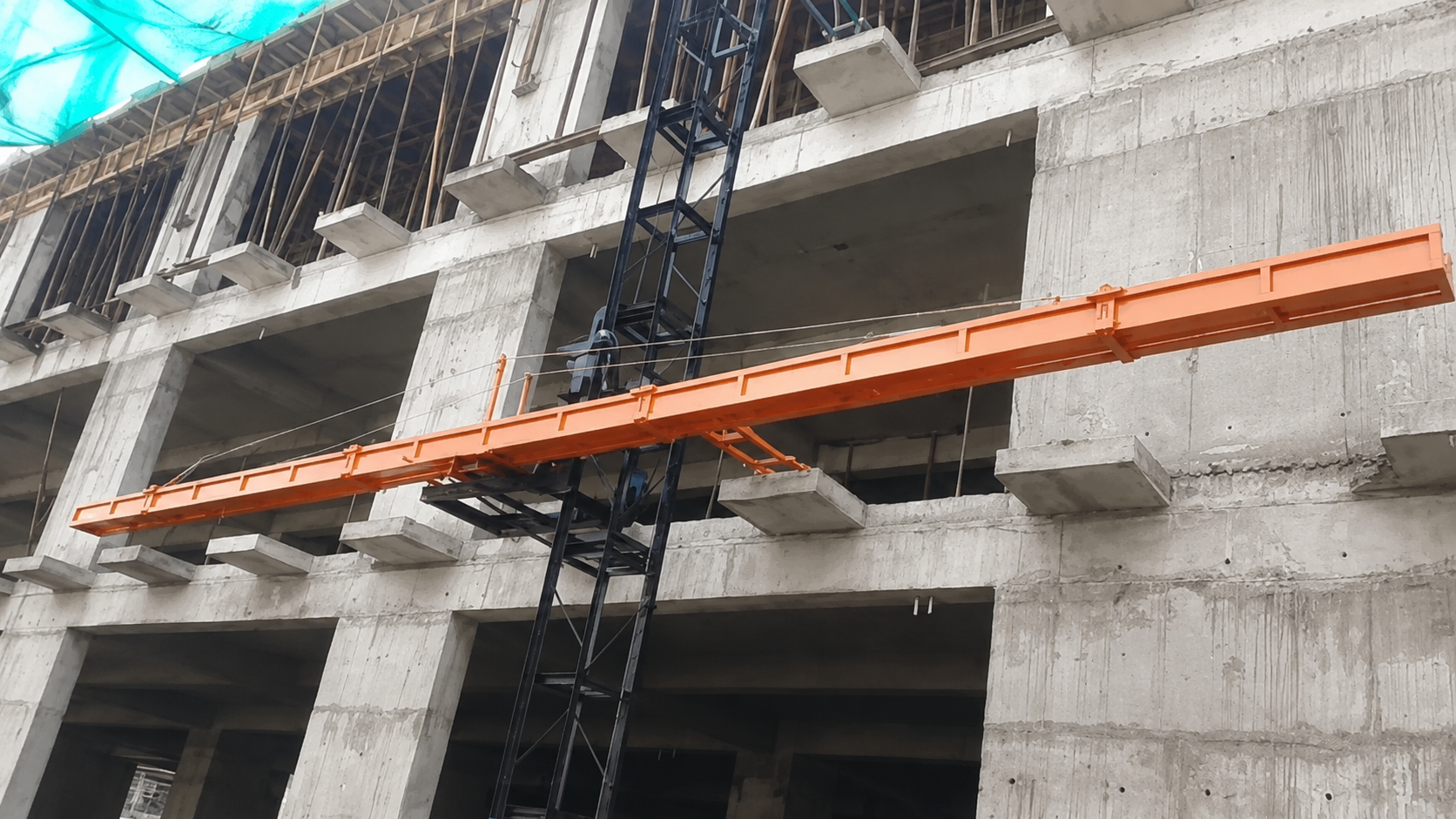

Rebar Carrier
Available in 7 metre and 9 metre lengths. Maximum capacity 500 kg. Suitable for both vertical and horizontal transportation.
Floor Selection System
Optional automatic floor selection for improved operational efficiency across multi-storey lifts.

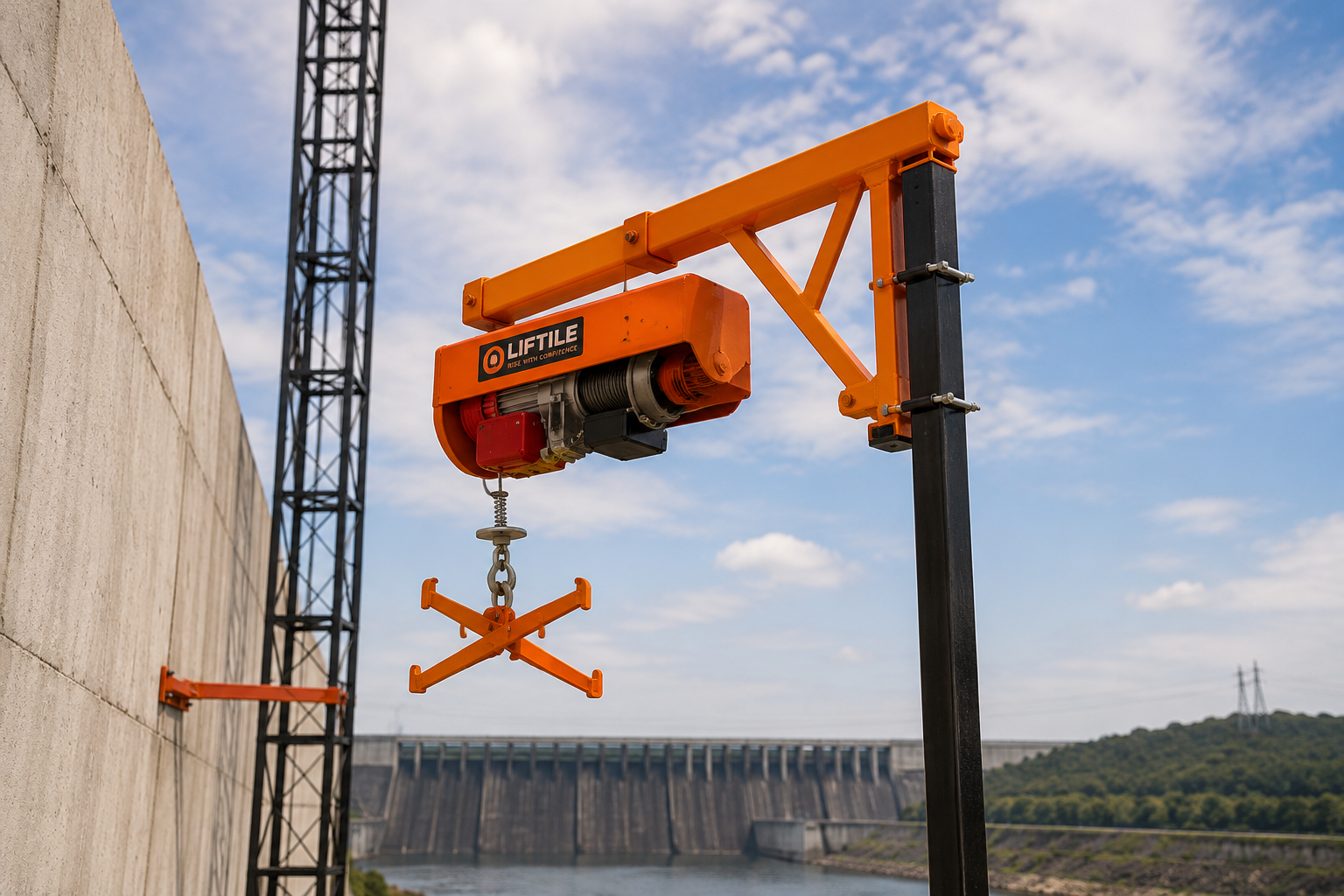

Manual Erection Crane
Assists with mast installation and tower extension during erection on site.

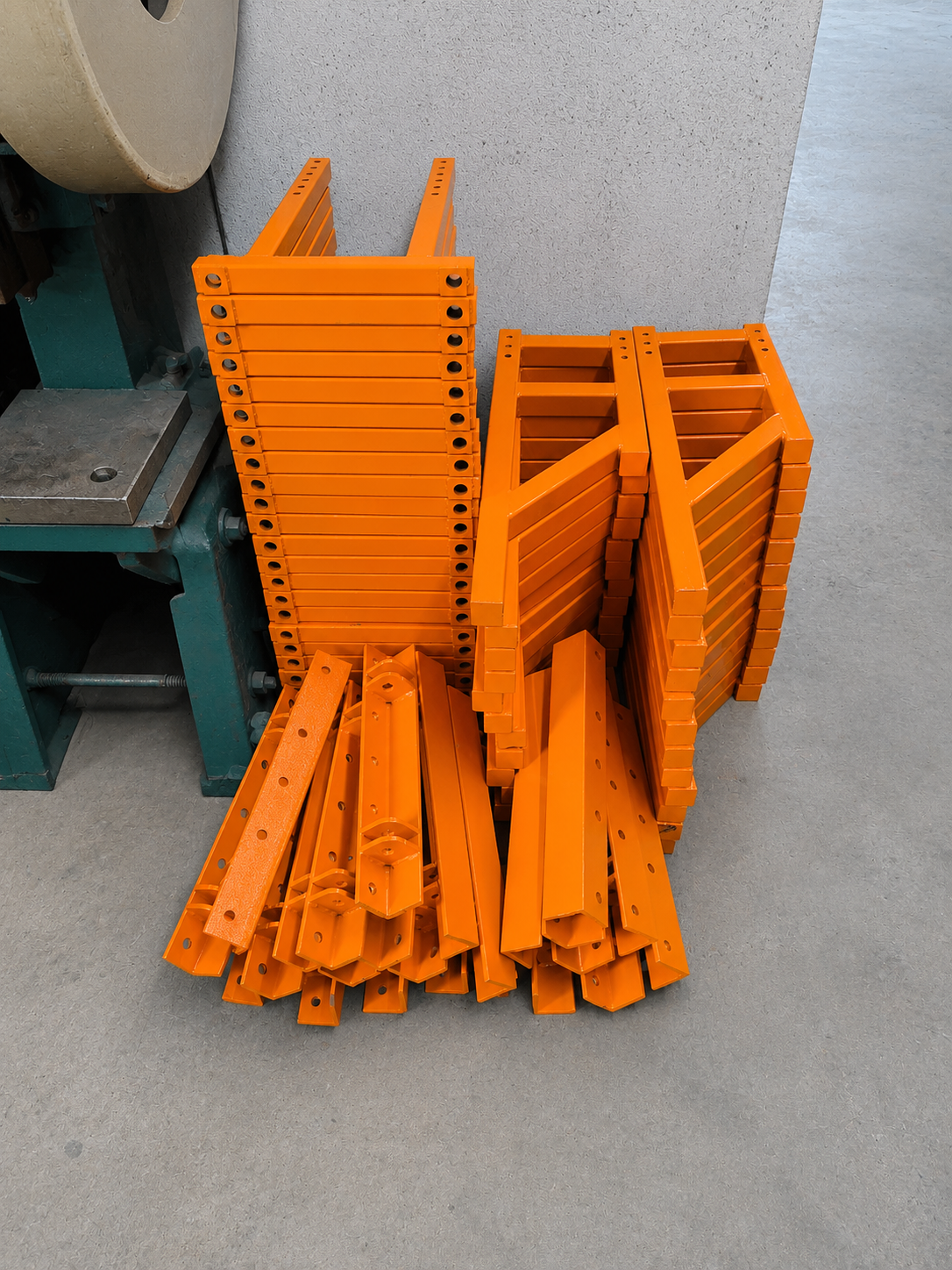

Scaffolding / Wall Tie System
Provides additional structural stability for higher lifting applications tied to the building facade.
Interchangeable Bucket System
Quickly switch between different lifting attachments based on project requirements.

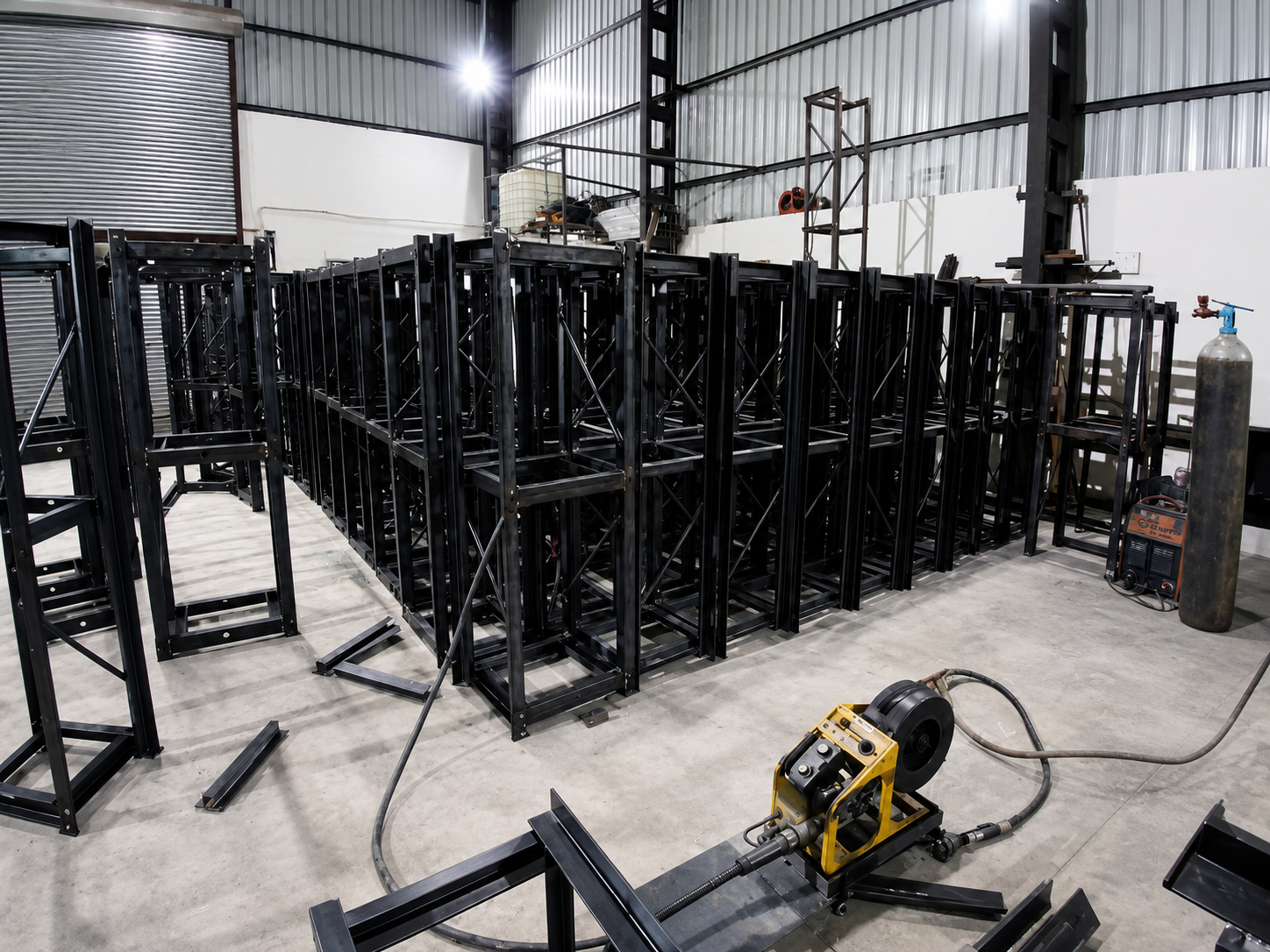

Additional Mast Sections
500 × 400 × 1500 mm heavy-duty mast sections for increased lifting height configurations.

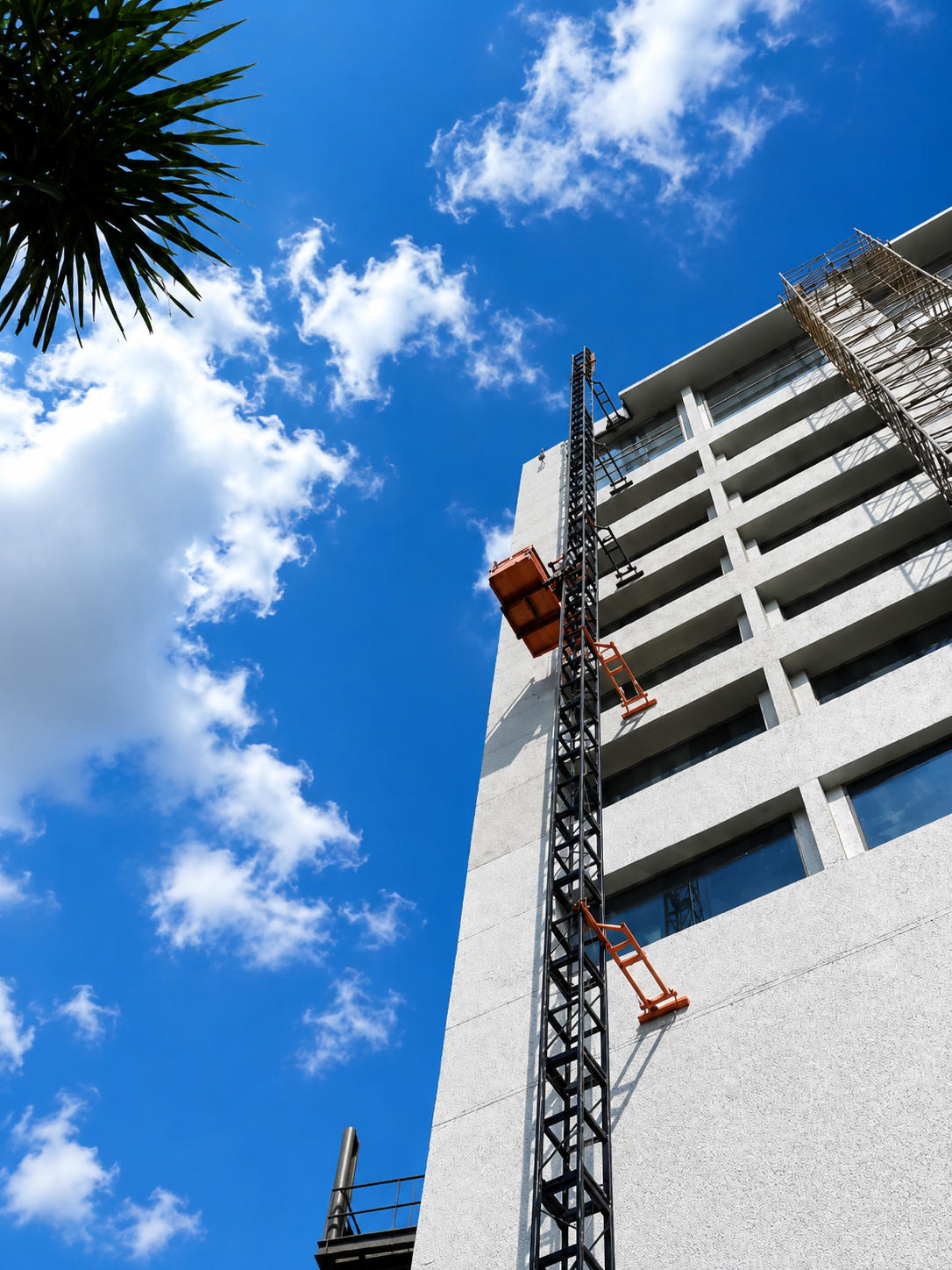

In Operation

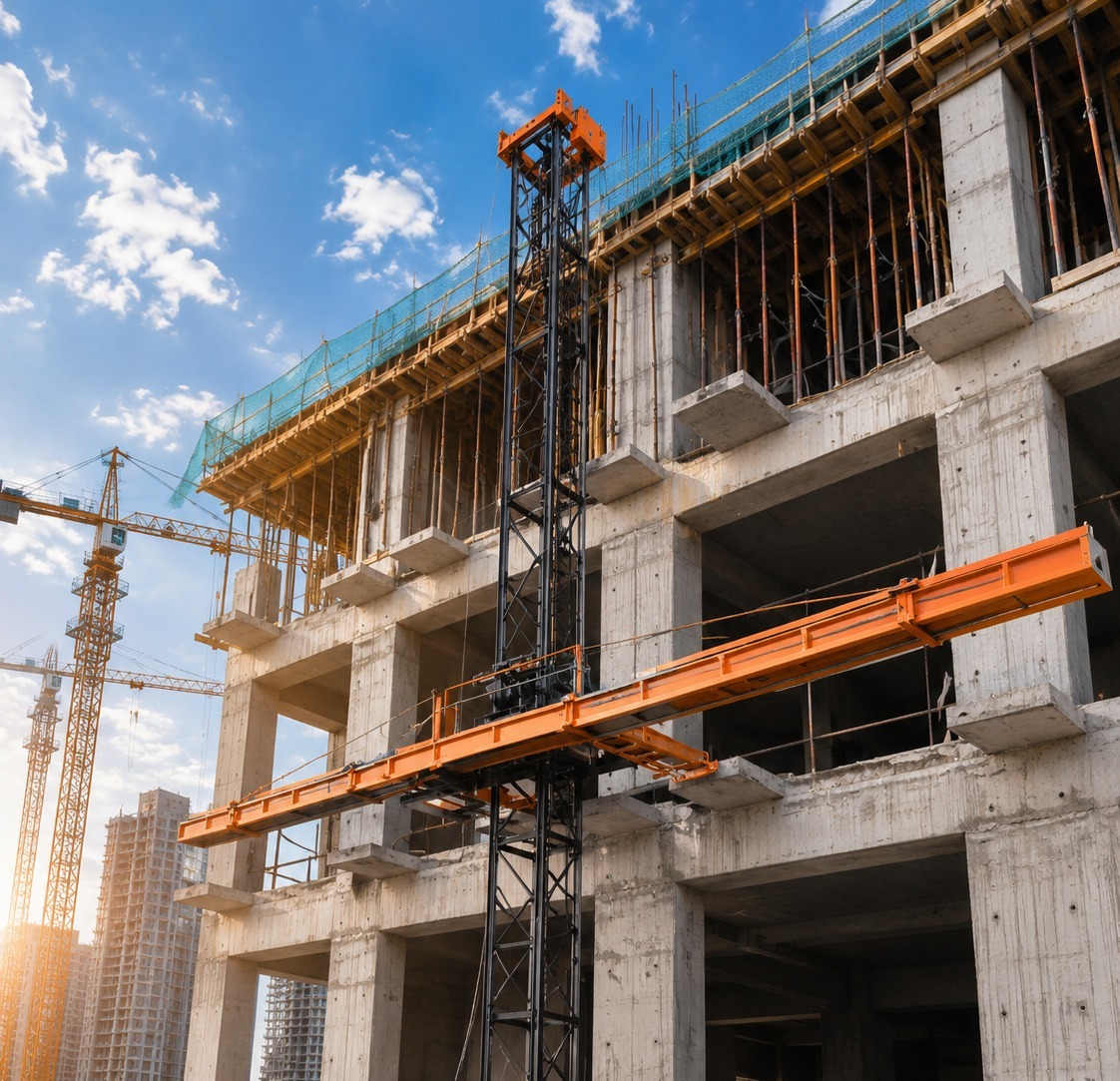

LMTB Series with rebar carrier delivering reliable material lifting on a live construction project.
Up to
125 metres
Why LMTB Series
Built for Modern
Construction Sites
The LMTB Series combines advanced engineering, premium branded components and versatile lifting capabilities to maximize productivity and safety on every project.
Multiple Lifting Attachments
Supports different bucket and carrier configurations for multiple applications.
High-Rise Ready
Designed for lifting heights up to 125 metres.
Premium Components
Trusted brands ensure dependable performance and long service life.
Advanced Safety
Brake motor, emergency stop and limit switch protection enhance operational safety.
Owner Inspected
Every machine is personally inspected and trial tested before dispatch.
Nationwide Support
Installation guidance, technical support and after-sales service across India.
Data Sheet
Technical Specifications
Compare all LMTB Series models and choose the ideal solution for your project requirements.
| Parameter | LMTB1000 | LMTB1500 |
|---|---|---|
| Rated Gross Load | 1000 kg | 1500 kg |
| Recommended Payload | 800 kg | 1200 kg |
| Wire Rope | 12 mm (6×36) | 12 mm (6×36) |
| Electric Motor | 10 HP (7.5 kW Brake Motor) | 12.5 HP (9.3 kW Brake Motor) |
| Lifting Speed | 30–35 m/min | 30–35 m/min |
| Maximum Height | 125 m | 125 m |
| Mast Section | 500 × 400 × 1500 mm | 500 × 400 × 1500 mm |
| Rectangle Bucket | 1250 × 800 × 610 mm | 1400 × 1000 × 500 mm |
* Specifications are subject to continuous product improvement without prior notice.
Documentation
Download Product Brochure
Download the complete technical catalogue including specifications, optional accessories, drawings and product information.
Knowledge Base
Frequently Asked Questions
Everything builders and contractors most often ask us about the LMTB Series.
The LMTB Series supports lifting heights up to 125 metres depending on project requirements.
More Solutions
Explore More LIFTILE Solutions

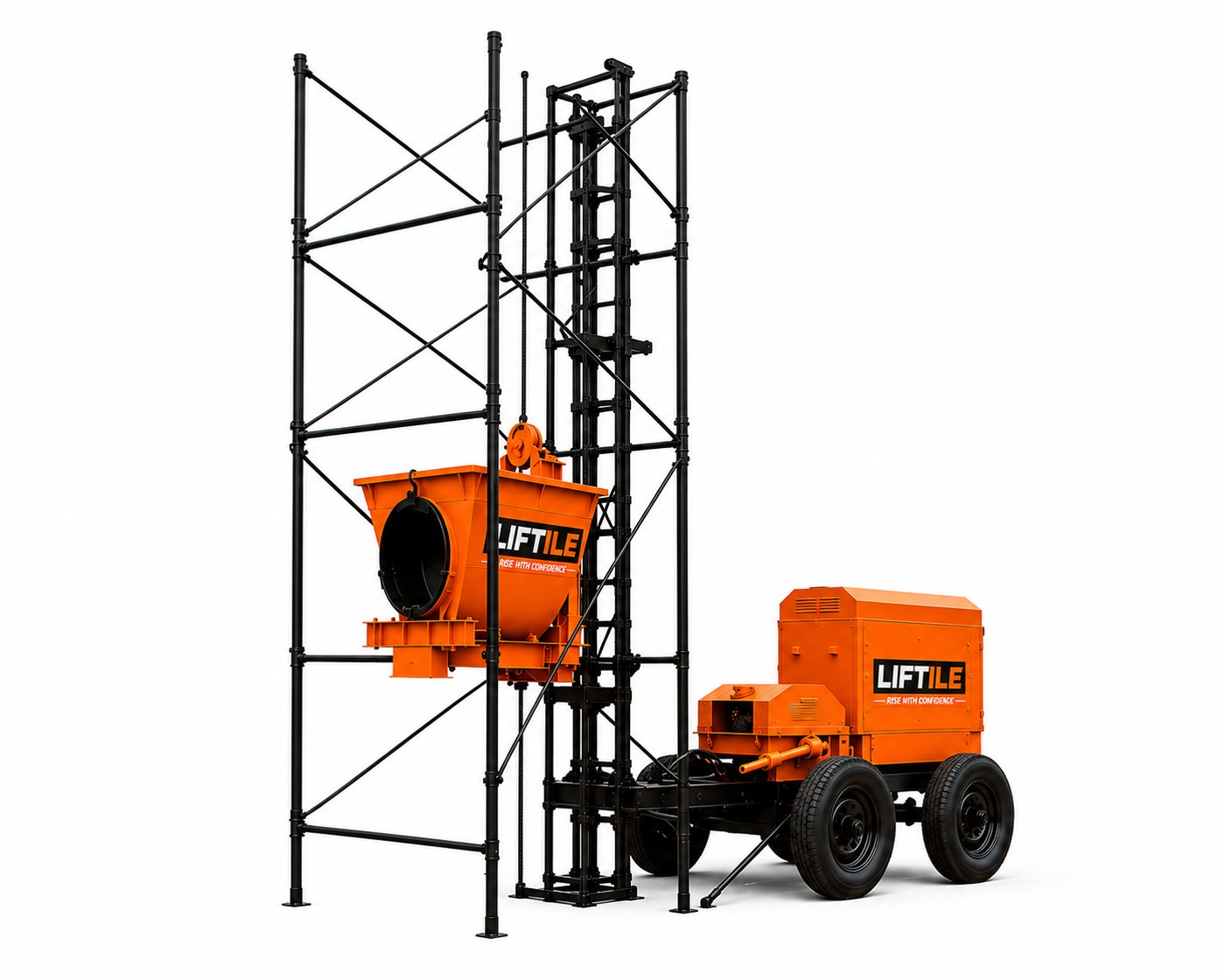

Conventional Tower Hoist
Reliable wire-rope tower hoist (LTC Series) for dependable material lifting up to 65 m on residential and industrial projects.
View Product

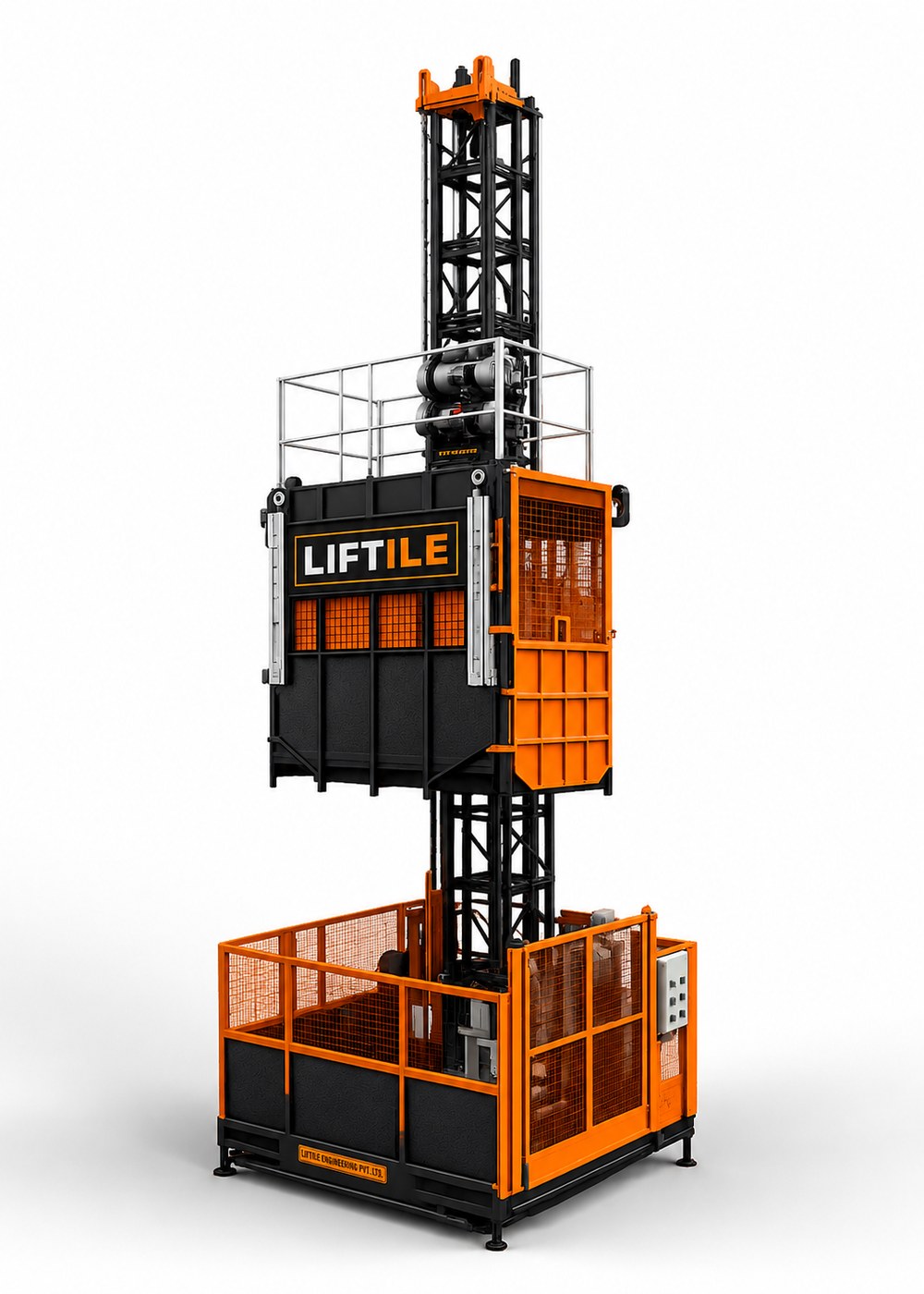

Passenger Cum Material Hoist
Twin-cage hoist for safe transport of personnel and materials up to 150 m on high-rise construction sites.
View Product

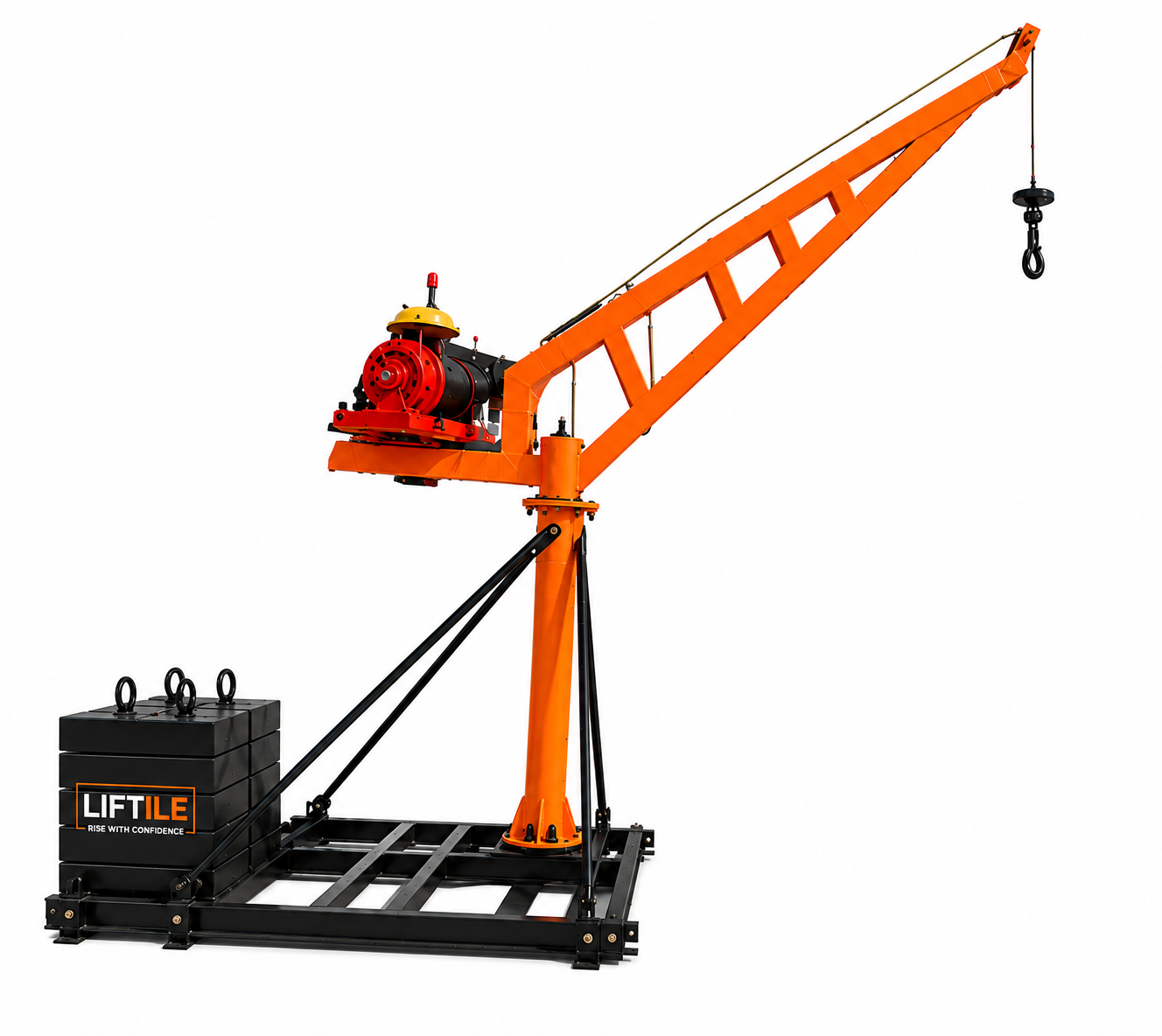

Monkey Lift
Compact mini jib crane for slab-level material movement — ideal for tight sites and finishing phases.
View ProductHead to Head
Why Choose the LMTB Series?
Designed for modern construction projects where flexibility, productivity and safety are essential.
| Feature | Conventional Tower Hoist | LMTB Series |
|---|---|---|
| Material Lifting | ||
| Rectangle Bucket | ||
| Concrete Bucket (Tilting) | Optional | |
| Rebar Carrier | ||
| Interchangeable Attachments | ||
| Floor Selection System | Optional | |
| Manual Erection Crane Compatibility | ||
| Versatility | Standard | Excellent |
| Maximum Height | 65 m | 125 m |
| Overall Productivity | High | Very High |
Industries We Serve
Trusted Across Every Construction Project
The LMTB Series is trusted by builders, contractors and infrastructure companies across a wide range of industries.
Residential Buildings
Reliable material lifting for apartment complexes, villas and residential towers.
Commercial Buildings
Efficient vertical transport for offices, malls and mixed-use developments.
Industrial Plants
Dependable lifting for plants, factories and heavy industrial installations.
Hospitals
Safe material transport for hospital campuses and healthcare infrastructure.
Hotels
Consistent lifting performance for hotel towers and hospitality projects.
Educational Institutions
Trusted lifting solutions for schools, universities and institutional campuses.
Infrastructure Projects
Proven performance on metros, treatment plants and public infrastructure.
Warehouse Construction
Fast material movement for large-format warehouses and distribution centres.
High-Rise Buildings
Vertical lifting up to 125 metres for tall towers and mixed-use skyscrapers.
Quality & Safety
Built Around Quality and Safety
Every LMTB Series machine is manufactured using premium materials, trusted branded components and strict quality inspections before dispatch.
Owner Inspected Before Dispatch
Every machine is personally inspected and signed off by the owner before it leaves the factory.
Trial Run Tested
Full-load trial runs on every machine verify performance, brake response and safety systems.
Premium Branded Components
Bonfiglioli, ABB, Schneider Electric, Usha Martin, FAG, Elecon and Polycab — trusted throughout.
Heavy Duty Fabrication
Precision-welded steel structures built on decades of tower-hoist engineering experience.
Premium Powder Coating
7-tank surface treatment with durable powder coating for site-grade corrosion resistance.
Nationwide Technical Support
Installation, spares, service and technical assistance across every project geography in India.
Our Commitment
Built for Long-Term Performance
At LIFTILE, we believe construction machinery should deliver dependable performance, maximum safety and long-term value.
Every LMTB Series machine is engineered with premium components, thoroughly inspected before dispatch and supported by our technical team to help your projects move forward with confidence.
- Premium Components
- Owner Inspected
- Made in India
- Nationwide Support
Let's Build Together
Ready to Build Faster?
Discover how the LMTB Series can improve productivity, safety and efficiency on your next construction project.
- Up to 125 m Height
- Premium Branded Components
- Owner Inspected Before Dispatch
- Nationwide Technical Support
