Different Platform Lengths
Standard and extended platform options to match specific building geometries and façade layouts.
LRP10X Series
LIFTILE Rope
Suspended Platform
Engineered for safe, stable and efficient work at height — designed for high-rise construction, façade work, maintenance and exterior finishing applications.
- Up to 130 Mtr Height
- Premium Components
- Owner Inspected
- Made in India
Up to 130 m
Maximum Height
1000 kg
Gross Load Capacity
10–12 m/min
Platform Speed
Made in India
Engineered & Manufactured
Gallery
Rope Suspended Platform In Action
A closer look at the LIFTILE LRP10X — from precision fabrication at our factory to real high-rise applications across India.

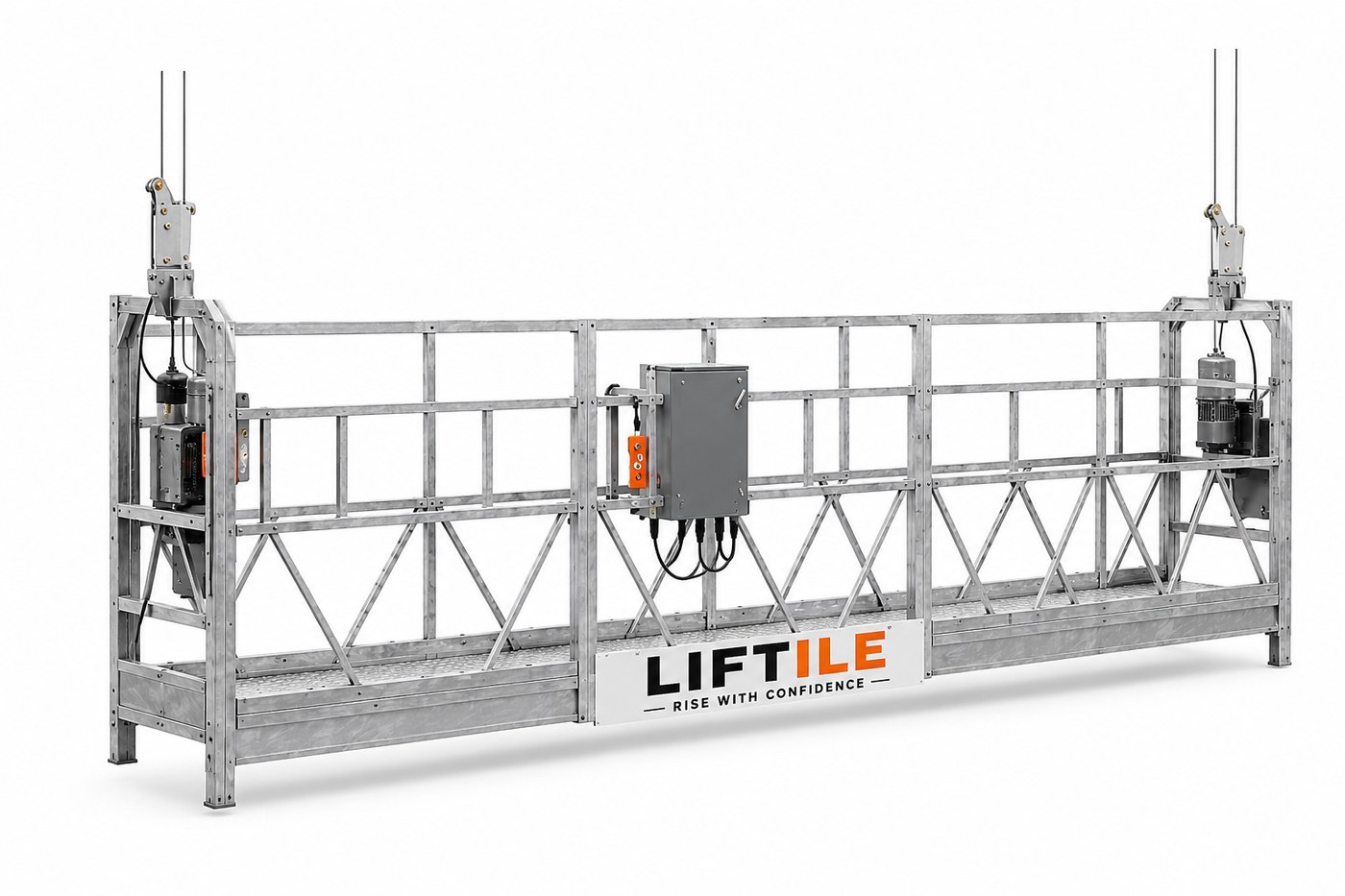

LRP10X Series
LIFTILE LRP10X Rope Suspended Platform — engineered for safe work at height
At a Glance
Quick Specifications
Everything you need to know about the LRP10X — engineered for safe access work at heights up to 130 metres.
Gross Load
1000 kg
Maximum Height
130 m
Platform Speed
10–12 m/min
Boom Length
6.5 ft
LRP10X
Heavy-duty rope suspended platform for high-rise façade & maintenance work
- Model
- LRP10X
- Gross Load
- 1000 kg
- Wire Rope
- 9.1 mm
- Maximum Height
- 130 m
- Platform Speed
- 10–12 m/min
- Boom Length
- 6.5 ft
- Operation
- Panel Box with Wired Remote Control
- Power Supply
- Three Phase
Key Features
Built for Safety.
Engineered for Reliability.
Every LIFTILE LRP10X Rope Suspended Platform is engineered with premium branded components and rigorous quality inspections to deliver dependable performance on demanding high-rise projects.
Quick & Easy Installation
Modular design and thoughtful engineering enable fast site setup, saving valuable project time on every deployment.
Heavy Duty Modular Platform
High-strength steel platform engineered for stability, safety and long-term reliability at working heights.
Hot Dip Galvanized Structure for Superior Corrosion Resistance
Hot dip galvanized steel structure delivers long-lasting corrosion protection for demanding on-site and coastal conditions.
Certified Usha Martin Wire Rope
ISI-certified Usha Martin 9.1 mm wire rope for superior strength, durability and dependable suspension.
Heavy Duty Suspension Mechanism
Precision-engineered suspension system delivers stable, controlled vertical movement even under full load.
Wired Remote Control
Responsive wired remote control enables safe, precise operation of the platform from the working surface.
Emergency Stop System
Dedicated emergency stop halts platform movement instantly during unsafe or unexpected conditions.
Smooth Vertical Movement
Well-tuned drive and suspension geometry deliver smooth, judder-free platform travel for operator confidence.
Owner Inspected Before Dispatch
Every LRP10X is personally inspected and quality signed off before leaving the LIFTILE factory floor.
Third Party Test Ready
Engineered and documented for third-party load and safety testing where required by site or regulatory norms.
Heavy Duty Safety Lock
Robust safety-lock mechanism engages automatically to protect operators against uncontrolled descent.
Premium Branded Components
Manufactured using trusted branded electricals and hardware including Usha Martin, ABB and Schneider Electric.
Optional Accessories
Optional Accessories
Configure the LRP10X for your specific façade, maintenance or high-rise access requirements with our range of premium accessories.
Additional Suspension Brackets
Extra rooftop suspension bracket sets for complex façade profiles and multi-drop project configurations.
Extra Wire Rope Length
Additional certified Usha Martin 9.1 mm wire rope for taller working heights up to 130 m.
Safety Lock
Independent secondary safety-lock unit for redundant fall-arrest protection during façade operations.
Electrical Control Panel
IP-rated electrical control panel with premium ABB / Schneider Electric switchgear and contactors.
Material Hoisting Attachment
Optional attachment for lifting tools, glass panels and finishing materials safely along with the platform.
Applications
Ideal for Every Access Application
From high-rise façade work to industrial chimney maintenance and bridge inspection — the LRP10X delivers dependable access performance across a wide range of vertical work environments.
High Rise Buildings
Safe access solution for façade, glazing, cleaning and maintenance on tall residential and commercial towers.
Glass Installation
Stable working platform for glass panel handling and precision curtain-wall installation.
Exterior Painting
Ideal platform for exterior painting, coating and finishing works on multi-storey buildings.
Building Maintenance
Routine maintenance, repair and inspection of building exteriors, joints and structural elements.
Façade Cleaning
Professional access platform for glass, ACP and stone façade cleaning across tall buildings.
Industrial Chimneys
Safe vertical access for inspection, repair and maintenance of tall industrial chimneys and stacks.
Bridge Inspection
Reliable access platform for bridge inspection, maintenance and structural repair work.
Commercial Buildings
Trusted access platform for office towers, malls, hotels and mixed-use commercial developments.
Infrastructure Projects
Proven performance on metros, treatment plants, power plants and public infrastructure works.
In Operation
LRP10X — engineered for safe, stable and efficient work at every height.
Up to
130 metres
Why LRP10X
Built for Modern
High-Rise Access
The LRP10X combines multi-layer safety systems, premium branded components and heavy-duty construction to deliver dependable access solutions for modern façade, maintenance and high-rise construction projects.
Premium Safety
Multi-layer safety systems including safety lock, emergency stop and heavy-duty suspension design.
Reliable Performance
Trial-run tested with load verification for dependable performance project after project.
Heavy Duty Structure
Precision-welded steel platform engineered for demanding conditions and long service life.
Premium Components
Trusted branded electricals, wire rope and hardware from Usha Martin, ABB and Schneider Electric.
Made in India
Designed and manufactured in India for Indian construction and infrastructure conditions.
Easy Installation
Modular design enables fast site setup, saving valuable project time on every deployment.
Nationwide Support
Installation guidance, spare parts and after-sales service across every project geography in India.
Technical Highlights
Precision Engineering. Premium Components.
A closer look at the engineering foundations that make the LRP10X a safe, stable and reliable rope suspended platform.
Heavy Duty Suspension System
Precision-engineered rooftop bracket + boom + winch assembly for stable, controlled platform suspension.
Certified Wire Rope
ISI-certified Usha Martin 9.1 mm wire rope delivers superior strength and safety at working heights.
Stable Working Platform
Heavy-duty steel platform engineered for even load distribution and rock-steady vertical movement.
Reliable Control System
Premium ABB / Schneider Electric electricals housed in an IP-rated panel with wired remote operation.
Precision Engineering
Fabricated to strict tolerances with owner inspection and third-party test-ready documentation.
Long Service Life
Premium materials, hot dip galvanized corrosion protection and quality components ensure years of dependable use.
Documentation
Download Product Brochure
Download the complete LRP10X technical catalogue — including specifications, safety systems, drawings and configuration options.
Knowledge Base
Frequently Asked Questions
Everything builders, contractors and facility engineers most often ask us about the LIFTILE Rope Suspended Platform.
The LIFTILE LRP10X Rope Suspended Platform is engineered to safely operate up to 130 metres — suitable for the tallest façade, maintenance and finishing applications.
