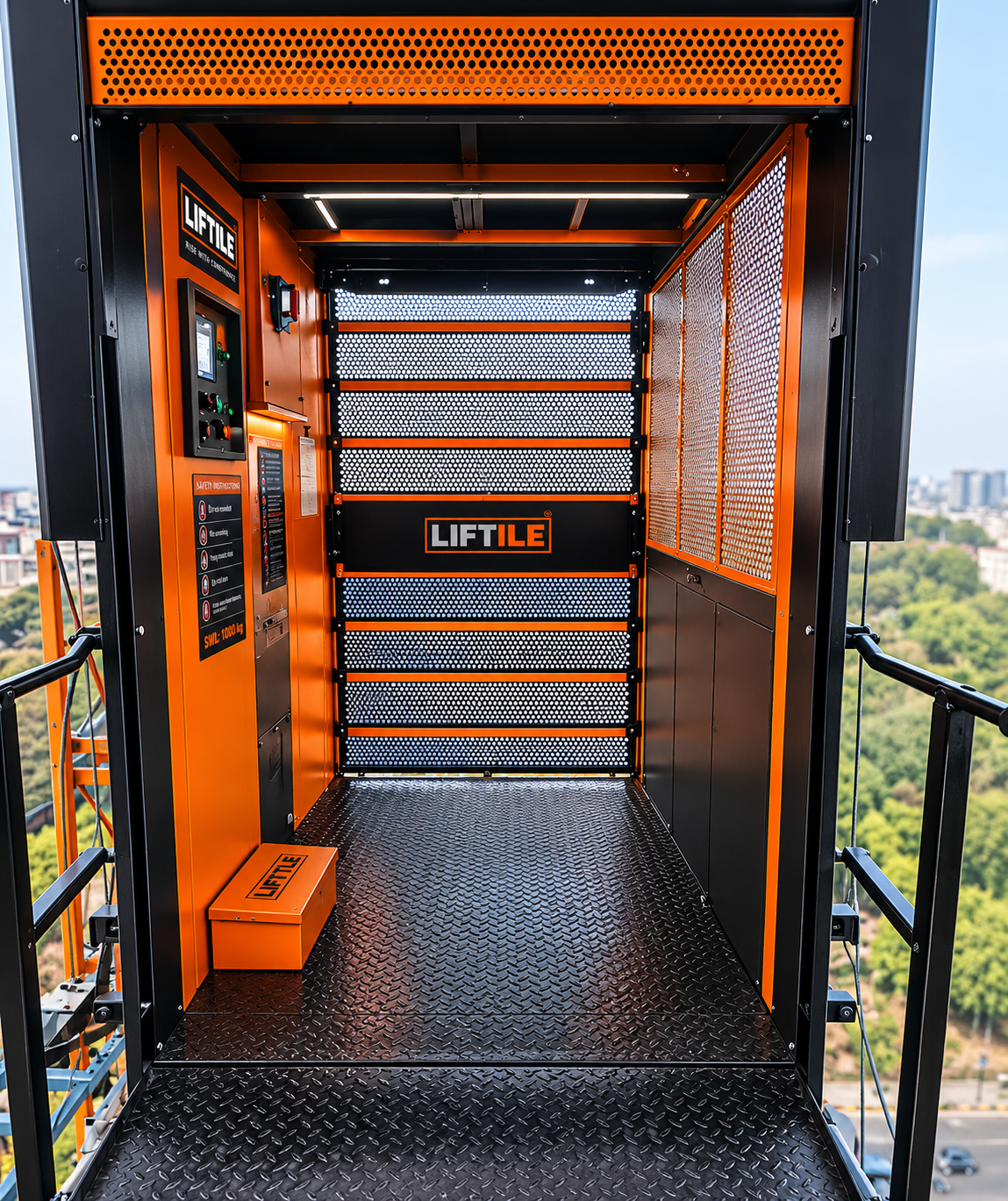

Cage
Heavy-duty steel cage engineered for safe transport of passengers and construction materials with premium finish.
LPMH Series
Passenger Cum
Material Hoist
(Rack & Pinion)
Engineered for safe, smooth and reliable vertical transportation of passengers and construction materials with advanced rack and pinion technology.
ModelsLPMH1000LPMH1500LPMH2000
- High Rise Ready
- Rack & Pinion Drive
- Advanced Safety
- Premium Components
- Made in India
Up to 150 m
Maximum Height
Up to 2000 kg
Rated Capacity
30 m/min
Lifting Speed
Made in India
Engineered & Manufactured
Gallery
LPMH Series In Action

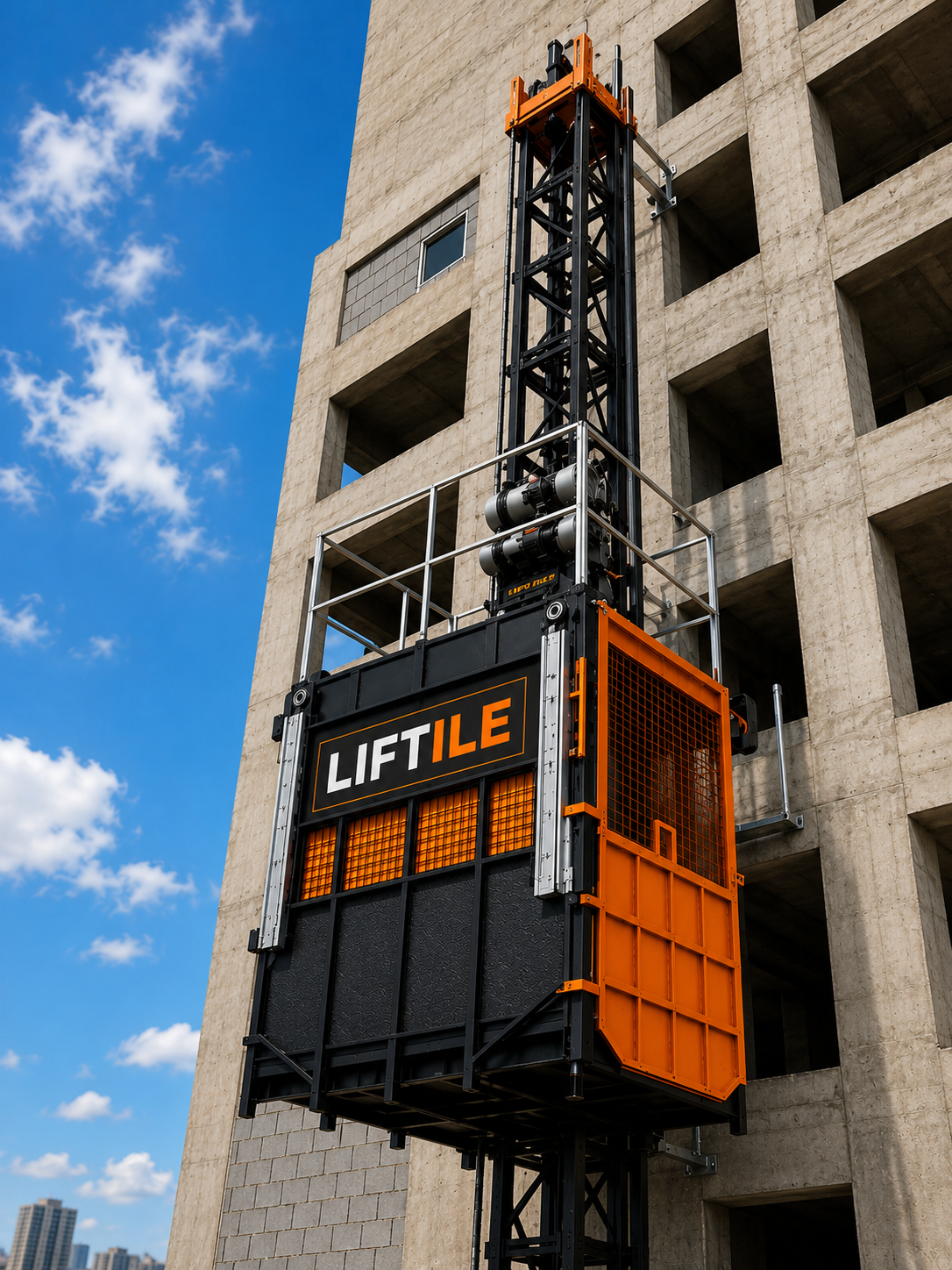

A closer look at the LIFTILE LPMH Series Passenger Cum Material Hoist deployed on live construction sites across India.
LPMH Series
LPMH Series — LIFTILE studio view of the twin-cage assembly
At a Glance
Quick Specifications
Compare configurations instantly — the specifications table updates as you switch between LPMH1000, LPMH1500 and LPMH2000.
LPMH1500
Best-selling 1500 kg / 18-person model for residential towers
- Rated Capacity
- 1500 kg / 18 persons
- Speed
- 36 m/min
- Maximum Height
- 150 m
- Safety Device
- SAJ 40-1.2 (Overspeed Governor)
- Mast Size
- 650 × 650 mm
- Mast Section
- Square 450 × 450 mm × 1.5 m
- Round Tube
- Ø60 × 4.5 mm Thick
- Wall Tie Distance
- Up to 6 m
- Cage Size
- 3.2 × 1.5 × 2.4 m (L × W × H)
- Floor Selection
- Standard
- Load Sensor
- Standard
Key Features
Built for Safety.
Engineered for Reliability.
The LIFTILE LPMH Series combines advanced rack & pinion drive technology, multi-layer safety systems and premium branded components to deliver dependable performance on high-rise construction projects.
Rack & Pinion Drive System
Precision-machined rack and pinion gear system delivers smooth, positive and reliable vertical movement even under full load.
Twin / Single Cage Configuration
Available with single or twin-cage arrangements to suit high-rise passenger movement and material handling requirements.
SAJ Overspeed Governor
Premium SAJ safety device continuously monitors travel speed and engages the safety brake to prevent free-fall.
Automatic Load Sensor
Real-time load monitoring prevents overloading and protects the machine, structure and personnel on every lift.
Emergency Stop System
Dedicated emergency stop halts machine operation instantly across the cage, base and control panel.
Premium Electrical Control Panel
ABB and Schneider Electric components deliver dependable control, reliable protection and long-term durability.
Automatic Floor Selection
Optional automatic floor selection system improves operational efficiency on tall buildings and multi-storey projects.
Owner Inspected Before Dispatch
Every LPMH machine undergoes trial run, safety verification and quality inspection prior to dispatch.
Hot Dip Galvanized Mast Sections
Hot Dip Galvanized Mast Sections for Superior Corrosion Protection.
Main Components
Engineered from the Ground Up
A closer look at the core sub-assemblies that make the LPMH Series a safe, dependable and long-lasting construction elevator.
Mast Section
650 × 650 × 1508 mm modular mast sections form the vertical tower with integrated rack profile.
Rack & Pinion Drive
Precision-machined rack teeth engage with pinion gears for controlled and positive vertical travel.
Brake Motor Assembly
Premium branded gearbox + brake motor unit for safe stopping, precise positioning and reliable operation.
SAJ Safety Device
Overspeed governor engages a mechanical brake automatically if travel speed exceeds safe limits.
Electrical Cabinet
ABB / Schneider Electric electricals housed in an IP-rated cabinet with premium switchgear and contactors.
Wall Tie System
Structural wall-ties secure the mast to the building at intervals of up to 6 m for high-rise stability.
Base Frame & Landing
Robust base frame with landing gates, safety mesh and ground-level access controls for safe boarding.
Applications
Ideal for Every High-Rise Project
From residential towers to industrial plants, the LPMH Series delivers safe passenger and material lifting across a wide range of construction environments.
High-Rise Residential Towers
Safe passenger and material lifting for tall residential complexes and apartment towers.
Commercial Buildings
Reliable vertical transport for office towers, shopping malls and mixed-use complexes.
Hotels & Hospitality
Efficient movement of workers, materials and finishing crews on hotel and resort projects.
Hospitals & Healthcare
Consistent lifting solution for multi-storey hospital campuses and healthcare infrastructure.
Educational Institutions
Dependable hoisting on schools, universities and institutional campus projects.
Industrial & Infrastructure
Passenger + material lifting on heavy industry, refineries, power plants and infrastructure sites.
In Operation
LPMH Series delivering safe, reliable passenger and material lifting on high-rise construction sites.
Up to
150 metres
Why LPMH Series
Why Builders
Choose LIFTILE
The LPMH Series is engineered to maximize safety, reliability and productivity on demanding high-rise construction projects across India.
Built for High-Rise
Engineered for demanding construction environments up to 150 metres.
Multi-Layer Safety
Overspeed governor, load sensor, limit switches and emergency stop working in unison.
Premium Components
Trusted branded electricals and hardware including ABB, Schneider Electric and SAJ.
Passenger & Material
Purpose-built for combined personnel movement and construction material transport.
Owner Inspected
Every machine is trial-run and quality inspected before dispatch to site.
Nationwide Support
Installation guidance, technical assistance and after-sales support across India.
Data Sheet
Technical Specifications
Compare all LPMH Series configurations side-by-side and choose the ideal model for your project requirements.
| Parameter | LPMH1000 | LPMH1500 | LPMH2000 |
|---|---|---|---|
| Rated Capacity | 1000 kg / 12 persons | 1500 kg / 18 persons | 2000 kg / 24 persons |
| Lifting Speed | 36 m/min | 36 m/min | 40 m/min |
| Maximum Height | 100 m | 150 m | 150 m |
| Drive System | Rack & Pinion | Rack & Pinion | Rack & Pinion |
| Safety Device | SAJ 40-1.2 | SAJ 40-1.2 | SAJ 50-1.4 |
| Mast Section | 650 × 650 × 1508 mm | 650 × 650 × 1508 mm | 650 × 650 × 1508 mm |
| Cage Size (L × W × H) | 3.0 × 1.3 × 2.4 m | 3.2 × 1.5 × 2.4 m | 3.6 × 1.5 × 2.4 m |
| Wall Tie Distance | Up to 6 m | Up to 6 m | Up to 6 m |
| Floor Selection | Optional | Standard | Standard |
* Specifications are subject to continuous product improvement without prior notice.
Electrical Data
Electrical Specifications
Premium branded electricals designed for dependable control, safety and long-term reliability across every LPMH Series machine.
| Parameter | Specification |
|---|---|
| Power Supply | 3-Phase, 415 V AC, 50 Hz |
| Drive Motor | 3 × 11 kW (single cage) / 6 × 11 kW (twin cage), Brake Motor |
| Control System | PLC based with premium contactors and relays |
| Main Control Panel | ABB / Schneider Electric switchgear housed in IP-rated cabinet |
| Cabin Control Panel | Wired push-button + emergency stop + floor indicator |
| Power Cable | Polycab / equivalent premium multi-core trailing cable |
| Limit Switches | Upper & lower travel limit + final limit safety cutoff |
| Overload Protection | Automatic load-sensor cutoff at rated capacity |
| Emergency Stop | Cage + base + main panel — instant halt on activation |
Electrical configuration may be customised based on site requirements and project specifications.

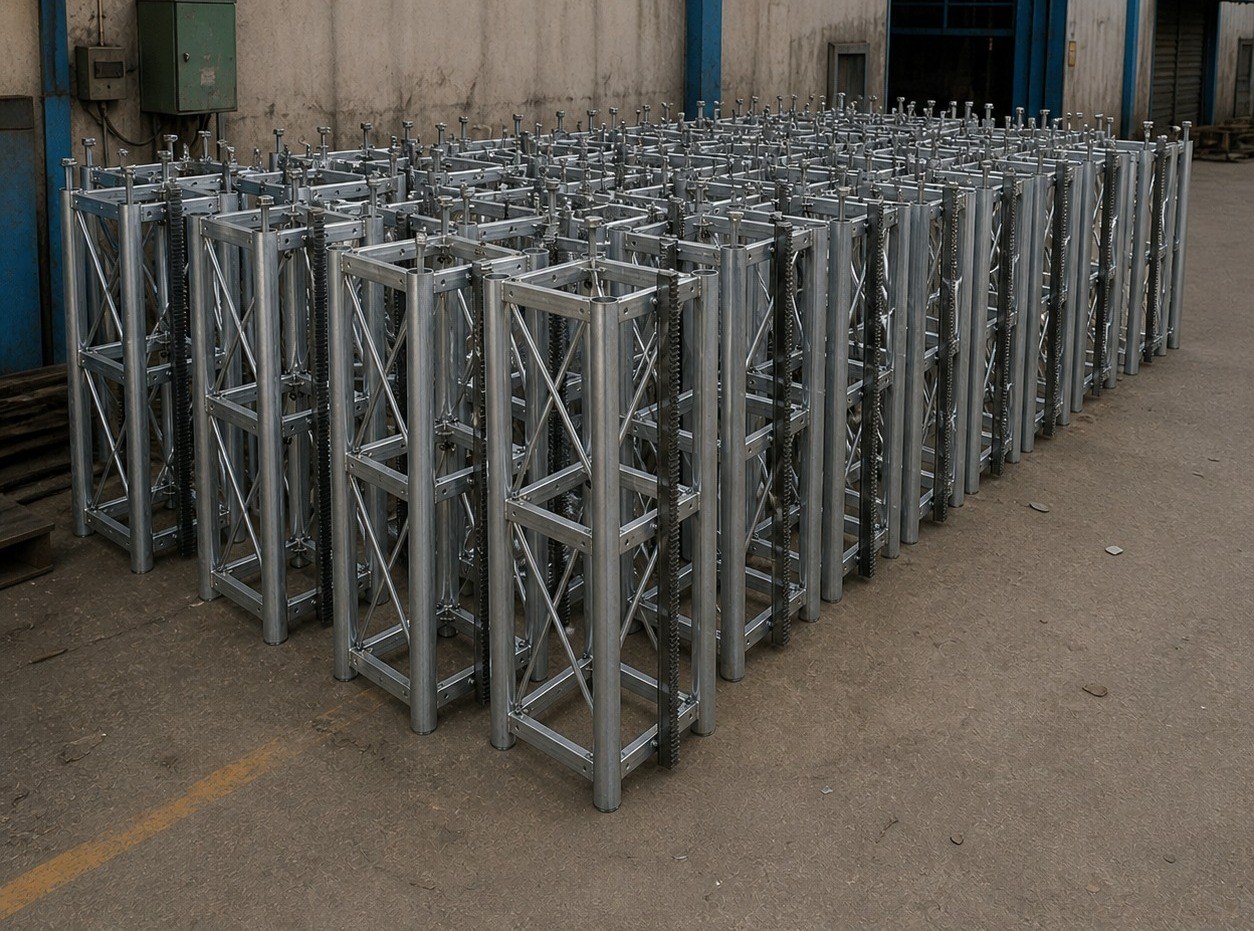

Modular Mast System
Hot Dip Galvanized modular mast — 650 × 650 mm size, Square 450 × 450 × 1.5 m sections, Ø60 × 4.5 mm round tube.
Mast Details
Precision Modular Mast System
Each mast section is fabricated from high-tensile structural steel with a precision-machined rack profile — engineered for positive engagement, high strength and long service life.
- Mast Size
- 650 × 650 mm
- Mast Section
- Square 450 × 450 mm × 1.5 m
- Round Tube
- Ø60 × 4.5 mm Thick
- Steel Grade
- High-tensile structural steel
- Rack Module
- M8, precision-machined
- Connector Bolts
- 8 × M24 Grade 8.8 high-strength bolts per joint
- Approximate Weight
- ≈ 165 kg per mast section
- Wall Tie Spacing
- Every 6 m along the mast height
- Free Standing Height
- Up to 9 m without wall ties
- Surface Treatment
- Hot Dip Galvanized for superior corrosion protection
Documentation
Download Product Brochure
Download the complete LPMH Series technical catalogue — including specifications, safety systems, drawings and configuration options.
Knowledge Base
Frequently Asked Questions
Find answers to the most common questions about the LPMH Series passenger cum material hoist.
A Passenger Cum Material Hoist is a rack-and-pinion driven construction elevator designed to transport both site personnel and construction materials safely up multi-storey buildings during construction and finishing phases.
More Solutions
Explore More LIFTILE Solutions
Multi Functional Tower Hoist
LMTB Series flagship tower hoist with interchangeable buckets, rebar carrier and heights up to 125 m.
View Product
Conventional Tower Hoist
LTC Series wire-rope tower hoist for dependable material lifting up to 65 m on residential and industrial projects.
View Product
Monkey Lift
Compact mini jib crane for slab-level material movement — ideal for tight sites and finishing phases.
View ProductHead to Head
Passenger Hoist vs. Conventional Tower Hoist
Two very different machines for two very different jobs. Here's how the LPMH Series compares against a conventional wire-rope tower hoist.
| Feature | Conventional Tower Hoist | LPMH Series |
|---|---|---|
| Passenger Lifting | ||
| Material Lifting | ||
| Drive System | Wire Rope | Rack & Pinion |
| Enclosed Cage | ||
| Overspeed Governor (SAJ) | ||
| Automatic Load Sensor | Optional | |
| Floor Selection System | Standard | |
| Maximum Height | 65 m | 150 m |
| Rated Capacity | 500–1500 kg | 1000–2000 kg |
| Lifting Speed | 30–35 m/min | 36–40 m/min |
| Certified for Personnel | ||
| Ideal For | Material Only | High-Rise Projects |
The LPMH Series is designed for high-rise projects that require certified passenger transport in addition to construction material movement.
Industries We Serve
Trusted Across Every Construction Project
The LPMH Series delivers dependable passenger and material lifting performance across a wide range of construction environments in India and beyond.
Residential High-Rise
Passenger + material lifting for tall apartment towers and residential campuses.
Commercial Towers
Offices, malls, business parks and mixed-use commercial developments.
Hotels & Hospitality
Efficient vertical transport for hotel towers and hospitality projects.
Hospitals & Healthcare
Certified passenger movement for multi-storey healthcare campuses.
Educational Institutions
Dependable hoisting for schools, colleges and university projects.
Industrial Plants
Reliable lifting on refineries, power plants and heavy industry.
Infrastructure Projects
Metro, treatment plants, ports and public infrastructure builds.
Warehouse Construction
Fast material and personnel movement on large-format warehouses.
Mixed-Use Skyscrapers
Vertical transport up to 150 metres for tall mixed-use developments.
Quality & Safety
Built Around Quality and Safety
Every LPMH Series machine is manufactured using premium materials, trusted branded components and strict quality inspections before dispatch.
Owner Inspected Before Dispatch
Every LPMH machine is personally inspected and signed off before leaving the factory.
Trial Run & Safety Verified
Full-load trial run + brake, overspeed and limit switch verification on every machine.
Premium Branded Components
ABB, Schneider Electric, SAJ, Polycab and other trusted brands used throughout.
Heavy Duty Fabrication
Precision-welded high-tensile steel mast sections engineered for long service life.
Premium Powder Coating
7-tank surface treatment with durable powder coating for site-grade corrosion resistance.
Nationwide Technical Support
Installation, spares, service and technical assistance across every project geography in India.
Let's Build Together
Ready to Lift Higher, Safer, Smarter?
Discover how the LIFTILE LPMH Series can improve safety, productivity and project timelines on your next high-rise construction build.
- Up to 150 m Height
- Rack & Pinion Drive
- SAJ Safety Governor
- Nationwide Support
